Main Technical Specifications
1) Cutting Specifications and Accuracy
- Round Material Diameter: Φ20mm—Φ110mm
- Square Material Size: □20mm—70mm
- Cutting Length: ≥5mm
- Material Head Length: ≥5mm
- Tail End Scrap Length: 75mm + less than cutting length
- Finished Length Tolerance: ±0.05/100mm
- Finished Verticality Tolerance: 0.1/100mm
- Cutting Surface Roughness: ≤6.3μm
2) Saw Blade Specifications
- Number of Teeth: Determined by material specifications
- Outer Diameter * Blade Thickness: Φ360mm*2.6mm

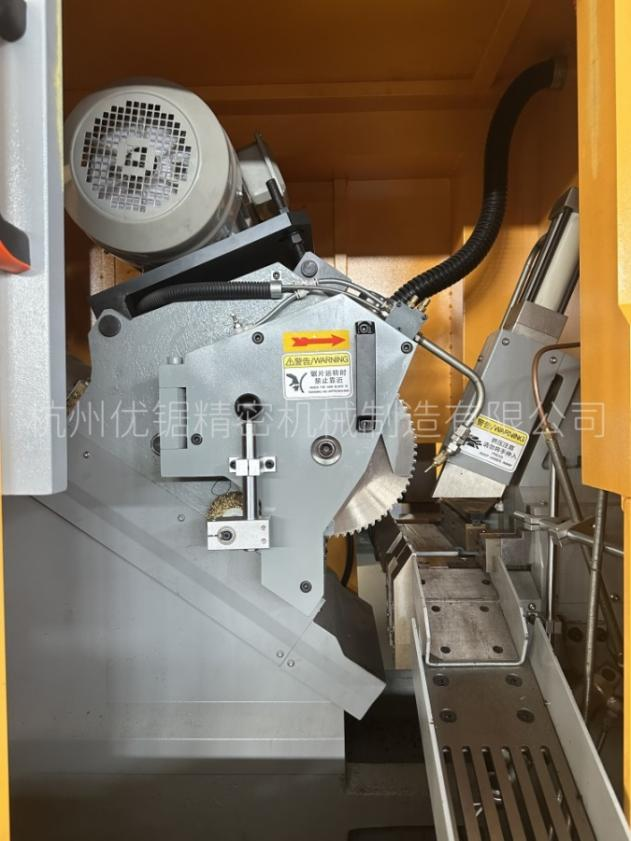

3) Saw Blade Spindle
- Spindle Precision: ≤0.01mm
- Saw Rotation Speed: 44-159 rpm (variable frequency speed control)
- Feeding Method: Oblique Cutting
- Feeding Drive Method: Servo Motor + Ball Screw
4) Main Clamping Method
- Clamping Method: Horizontal, Oblique Clamping

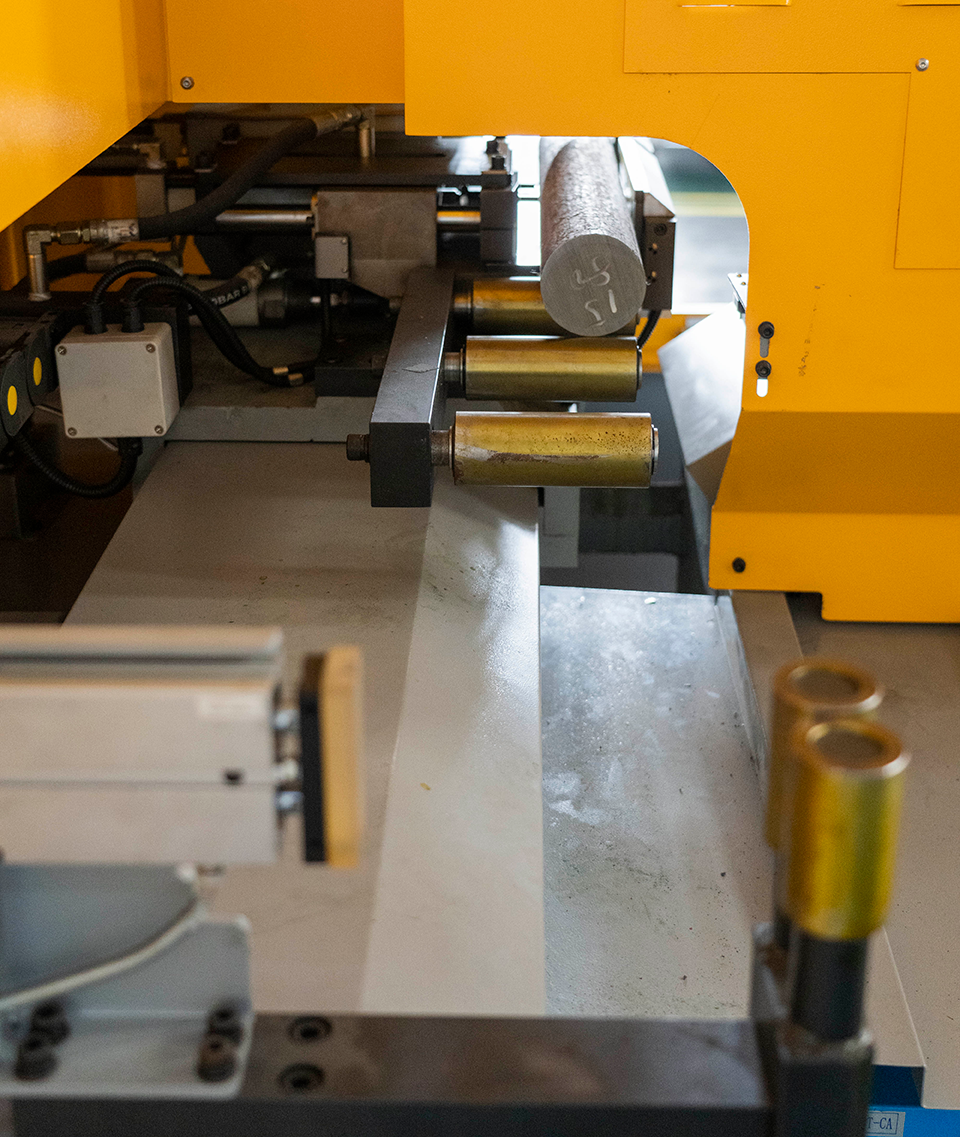

5) Feeding Method
- Clamping Method: Horizontal Clamping
- Feeding Drive Method: Servo Motor + Ball Screw
- Single Feeding Length: Up to 750mm, multiple cyclic feedings possible
6) Motor Usage
- Main Spindle Motor: AC 11kW
- Hydraulic Motor: AC 2.2kW
- Chip Removal Motor: AC 0.2kW
- Feeding Motor: AC 1.5kW Servo Motor
- Feeding Motor: AC 1.5kW Servo Motor
- Damper Cooling Fan: AC 38W 220V
- Lubrication Oil Pump: AC 25W 220V
7) Hydraulic System
- Hydraulic System Pressure: 7MPa
- Hydraulic Oil Tank Volume: 65L (46# Anti-wear Hydraulic Oil)
8) Pneumatic System
- Pneumatic Pressure: 0.4-0.7MPa
9) Cooling System
- Cooling Method: Oil Mist Spray Cooling
10) Lubrication System
- Lubrication Method: Fully Automatic Centralized Lubrication
11) Chip Removal System
- Chip Removal Method: Fully Automatic Chain Plate Chip Conveyor
12) Machine + Material Rack Dimensions (L*W*H)
- 7100mm*3050mm*2000mm
(Refer to "Section Nine: Layout Diagram")
13) Machine + Material Rack Weight
- 3850kg (3200+650)
Main Component Origin
|
Gearbox bearings:
|
SKF (Sweden)
|
|
Lead screw bearings:
|
NSK (Japan)
|
|
Main motor:
|
TECO (Taiwan)/Baide (Siemens)/Detong
|
|
Frequency converter:
|
Mitsubishi (Japan)
|
|
Servo motor:
|
Mitsubishi (Japan)
|
|
Servo driver:
|
Mitsubishi (Japan)
|
|
PLC:
|
Mitsubishi (Japan)
|
|
Touch screen:
|
Mitsubishi (Japan)
|
|
Low-voltage accessories:
|
Schneider (France)
|
|
Linear guide:
|
Topking (Taiwan)
|
|
Lead screw
|
HIWIN (Taiwan)
|
|
Pneumatic solenoid valve:
|
AirTAC (Taiwan)
|
|
Air pressure sensor:
|
SMC (Japan)
|
|
Main motor belt (narrow V-belt):
|
MITSUBOSHI (Japan)
|
|
Limit switch, photoelectric switches, proximity switches:
|
Omron (Japan)
|
