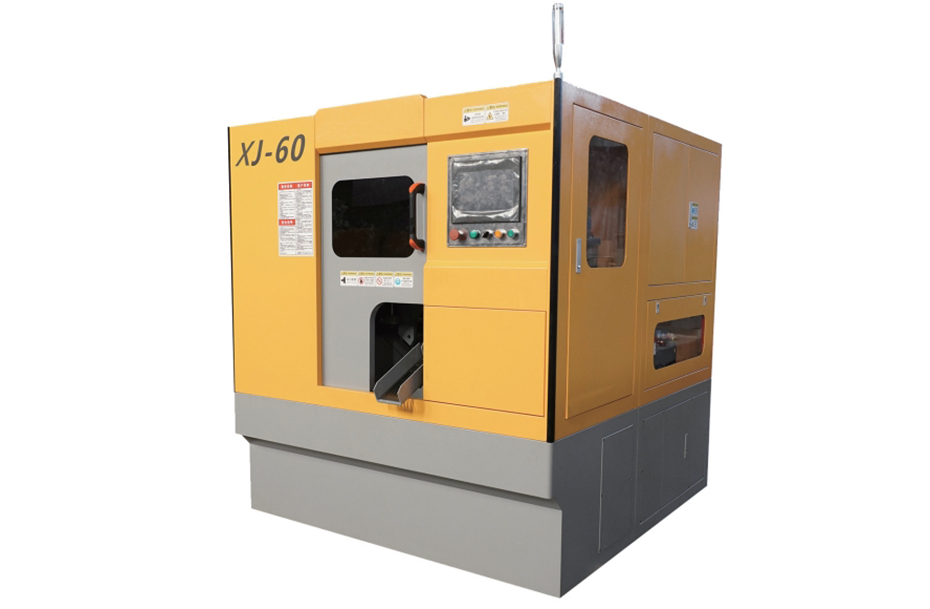

1) Cutting Specifications and Accuracy
Round Material: Φ10mm—Φ60mm
Square Material: □10mm—□40mm
Cutting Length: ≥5mm
End Length: ≥5mm
Tail Remnant Length: 65mm + less than cutting length
Finished Length Tolerance: ±0.05/100mm
Finished Verticality Tolerance: 0.1/100mm
Cutting Surface Roughness: ≤6.3μm

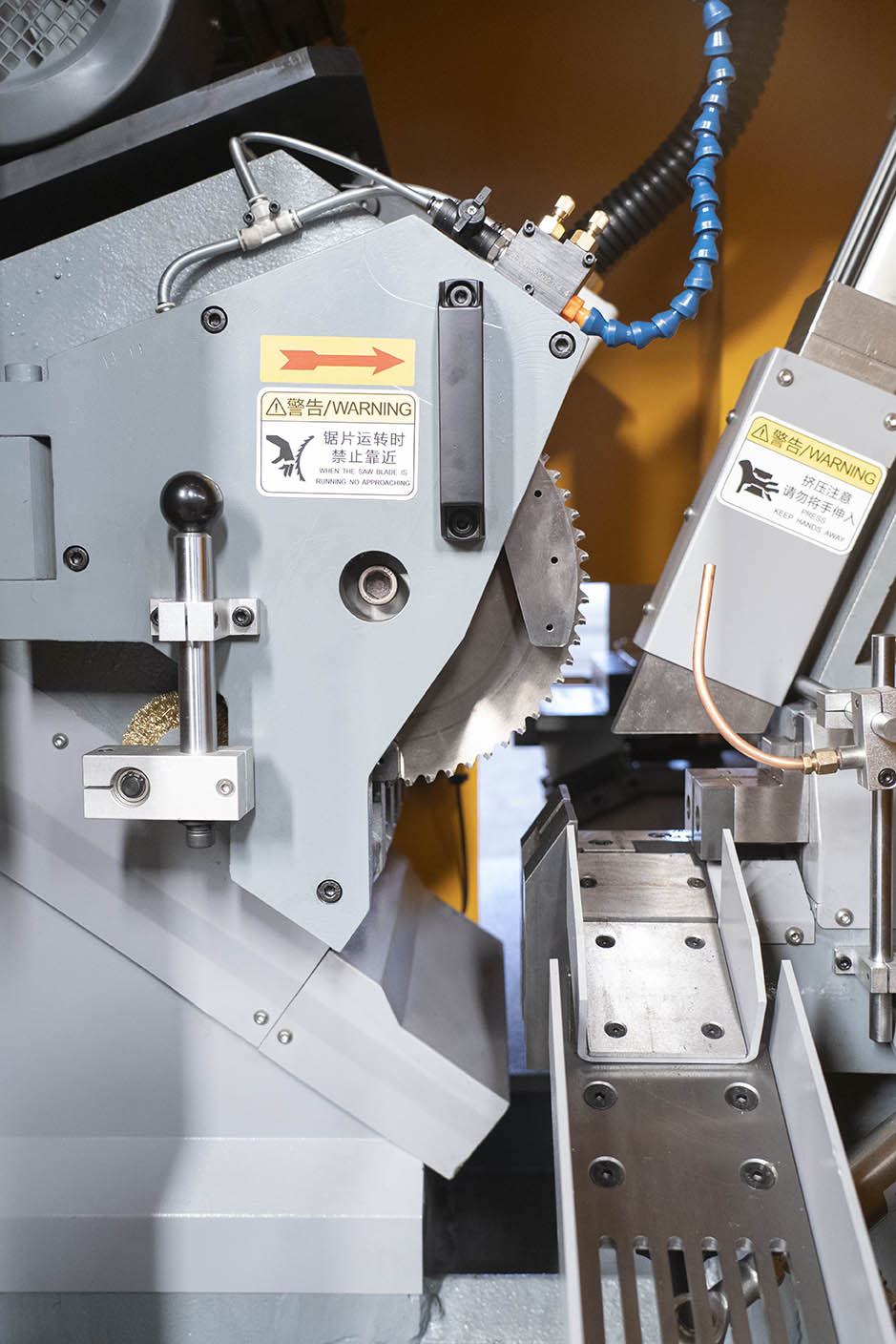

2) Saw Blade Specifications
Outer Diameter * Blade Thickness: Φ250mm*2.0mm
3) Saw Blade Spindle
Spindle Accuracy: ≤0.01mm
Saw Rotation Speed: 64-229 rpm (variable frequency speed control)
Feeding Method: Oblique Cutting
Feed Drive Method: Servo Motor + Ball Screw
4) Main Clamping Method
Clamping Method: Horizontal, Oblique Clamping
5) Feeding Method
Clamping Method: Horizontal Clamping
Feed Drive Method: Servo Motor + Ball Screw
Single Feed Length: Up to 650mm, multiple cyclic feeds possible
6) Motor Usage
Spindle Motor: AC5.5kW
Hydraulic Motor: AC2.2kW
Chip Removal Motor: AC0.2kW
Feeding Motor: AC1.0kW Servo Motor
Feed Motor: AC1.5kW Servo Motor
7) Hydraulic System
Hydraulic System Pressure: 7MPa
Hydraulic Oil Tank Volume: 65L (46# Anti-wear Hydraulic Oil)
8) Pneumatic System
Pneumatic Pressure: 0.4-0.7MPa
9) Cooling System
Cooling Method: Oil Mist Spray Cooling
10) Lubrication System
Lubrication Method: Fully Automatic Centralized Lubrication
11) Chip Removal System
Chip Removal Method: Fully Automatic Chain Plate Chip Conveyor
12) Machine + Material Rack Dimensions (L*W*H)
7000mm*2650mm*1800mm
(Refer to "Section IX. Layout Diagram")
13) Machine + Material Rack Weight
3000kg (2400+600)
Main Component Origin
Gearbox bearings: | SKF (Sweden) |
Lead screw bearings: | NSK (Japan) |
Main motor: | TECO (Taiwan)/Baide (Siemens)/Detong |
Frequency converter: | Mitsubishi (Japan) |
Servo motor: | Mitsubishi (Japan) |
Servo driver: | Mitsubishi (Japan) |
PLC: | Mitsubishi (Japan) |
Touch screen: | Mitsubishi (Japan) |
Low-voltage accessories: | Schneider (France) |
Linear guide: | Topking (Taiwan) |
Lead screw | HIWIN (Taiwan) |
Pneumatic solenoid valve: | AirTAC (Taiwan) |
Air pressure sensor: | SMC (Japan) |
Main motor belt (narrow V-belt): | MITSUBOSHI (Japan) |
Limit switch, photoelectric switches, proximity switches: | Omron (Japan) |
