Round Material: Φ100mm—Φ180mm
Square Material: □100mm—□140mm
Feeding Length: Up to 800mm, multiple cyclic feeding possible
Tail End Remaining Material Length: 110mm + less than the cutting length

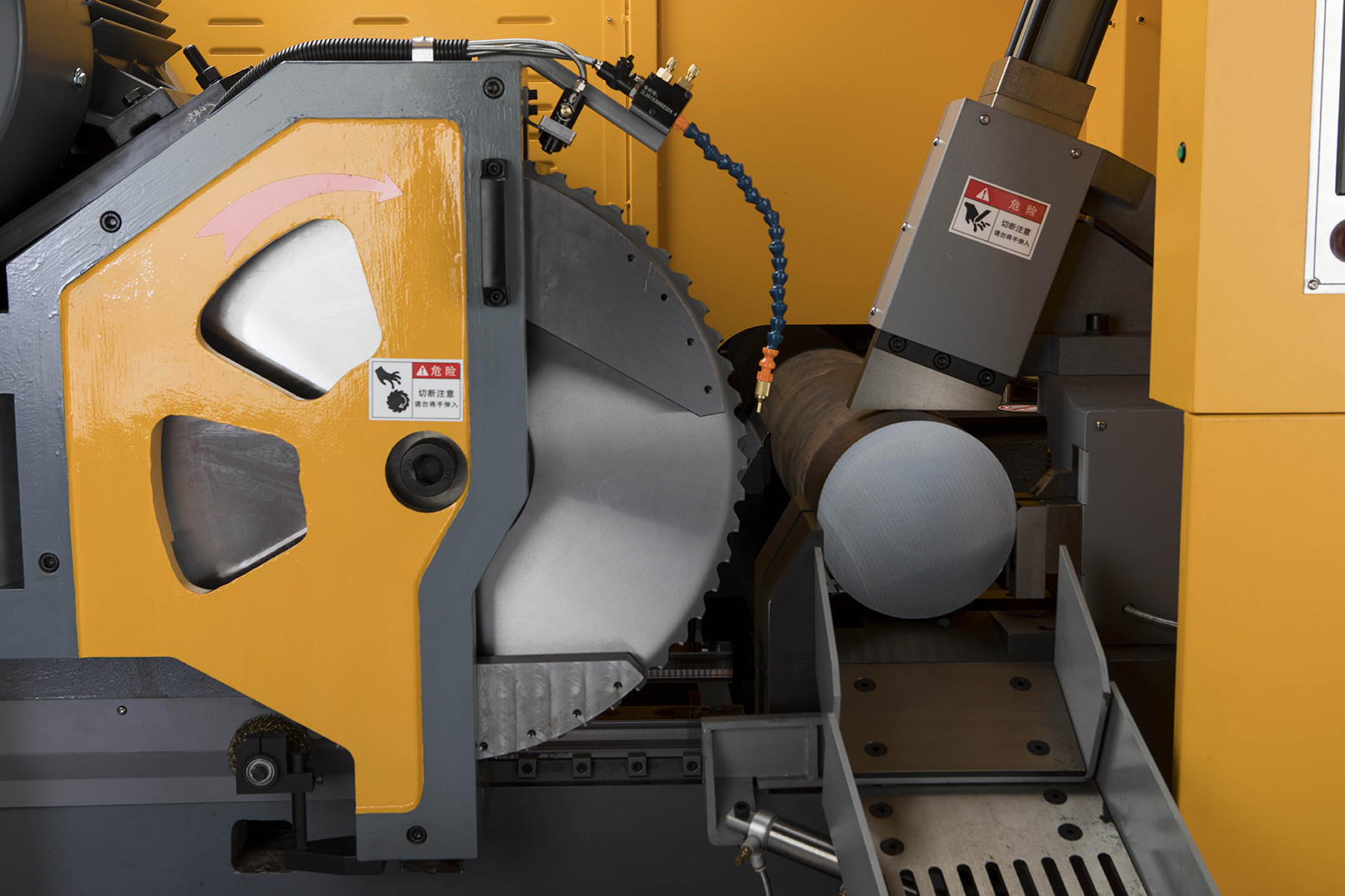

Saw Blade Specifications: Φ520mm*2.7mm
Saw Blade Rotation Speed: 30-110 rpm (frequency conversion speed control)
Feed Drive Method: Servo Feed Horizontal Cutting
Fixed Length Feeding Method: Servo Feeding
Main Clamp: Parallel Hydraulic Type
Feed Drive Method: Servo Motor + Ball Screw
Spindle Motor: 20kW
Hydraulic Motor: 5.5kW
Feeding Motor: 3.0kW Servo Motor
Feeding Motor: 3.0kW Servo Motor
Total Power: 36kW
Hydraulic System Pressure: 7MPa
Air Pressure Power: 0.4-0.7MPa
Cooling Method: Oil Mist Spray Cooling or Soap Solution Cooling
Lubrication Method: Fully Automatic Centralized Lubrication
Chip Disposal Method: Fully Automatic Chip Conveyor

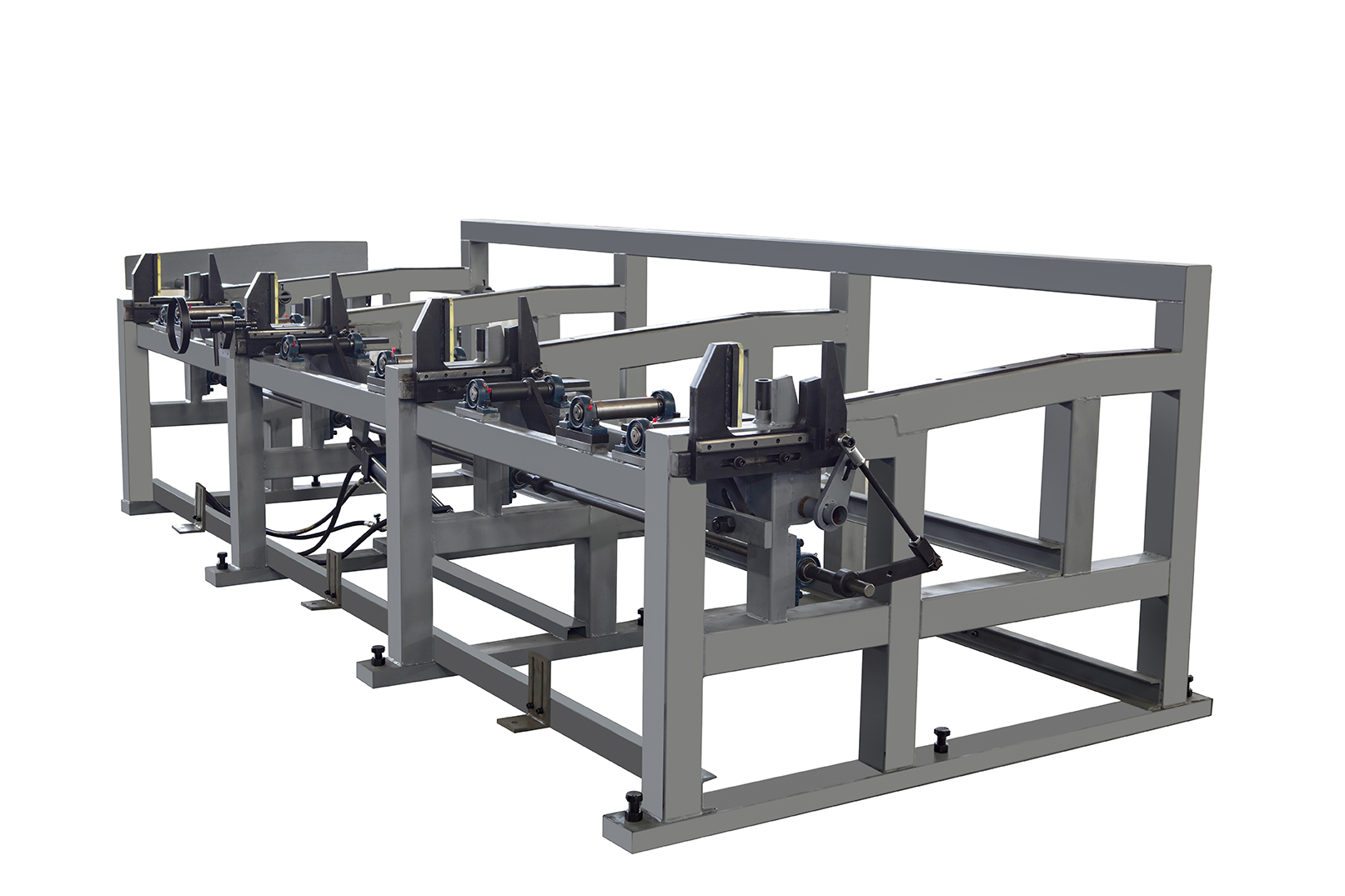

Machine + Material Rack Dimensions (L*W*H): 7400mm*3240mm*2300mm
Machine + Material Rack Weight: 8200kg (6800+1400)
Main Component Origin
| Gearbox bearings: | SKF (Sweden) |
| Main motor: |
Dongyuan (Taiwan)/Dedong (domestic)/Siemens (Germany) |
| Frequency converter: | Mitsubishi (Japan) |
| Servo motor: | Mitsubishi (Japan) |
| Servo driver: | Mitsubishi (Japan) |
| PLC: | Mitsubishi (Japan) |
| Touch screen: | Mitsubishi (Japan) |
| Low-voltage accessories: |
Schneider (France) |
|
Track: |
Shangyin (Taiwan)/Dinghan (Taiwan) |
| Lead screw |
Shangyin (Taiwan) |
|
Pneumatic solenoid valve, solenoid valve block, oil-water separator, pressure sensor: |
SMC (Japan)/Yadeke (Taiwan) |
| Main motor belt (narrow V-belt): |
MITSUBOSHI Three Stars (Japan) |
| Limit switch, photoelectric switches, proximity switches: | Omron (Japan) |
| Hydraulic solenoid valve: |
Meter (Japan)/Northern Precision Machine (Taiwan) |
|
Plunger pump, stacking valve: |
Oil Research (Taiwan) |
