Main Technical Specifications
1) Cutting Specifications and Accuracy
Round Material: Φ70mm—Φ150mm
Square Material: □70mm—□120mm
Cutting Length: ≥10mm
End Leftover Length: ≥10mm
Tail End Scrap Length: 110mm + less than cutting length
Finished Product Length Tolerance: ±0.10/100mm
Finished Product Perpendicularity Tolerance: 0.1/100mm
Cutting Surface Roughness: ≤6.3μm

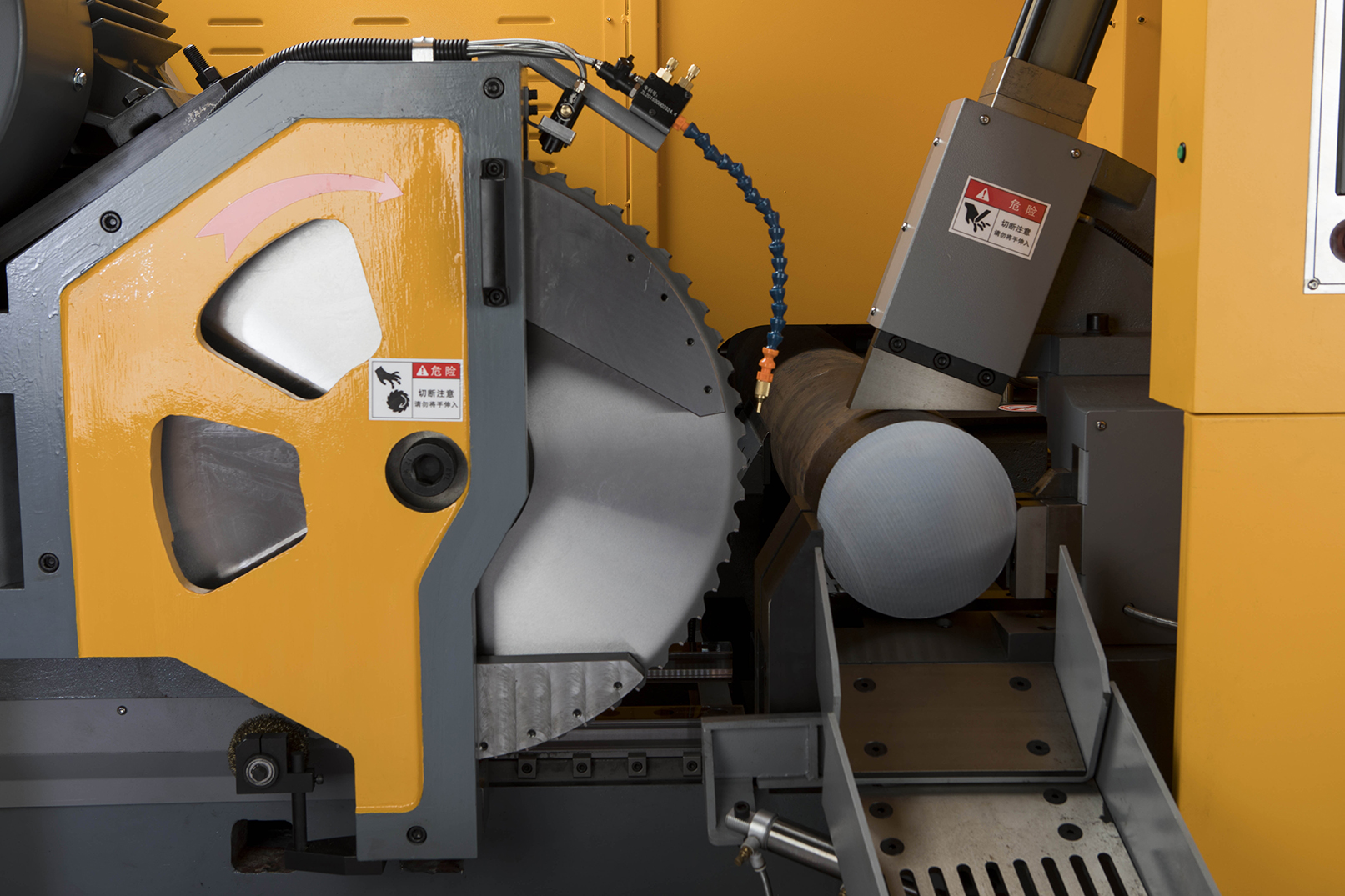

2) Saw Blade Specifications
Teeth Number: Selected based on material specifications
Outer Diameter * Blade Thickness: Φ460mm*2.7mm
3) Saw Blade Spindle
Spindle Accuracy: ≤0.01mm
Saw Rotation Speed: 35-125 rpm (variable frequency speed control)
Feeding Method: Horizontal Sawing
Feeding Drive Method: Servo Motor + Ball Screw
4) Main Clamping Method
Clamping Method: Horizontal, Oblique Clamping

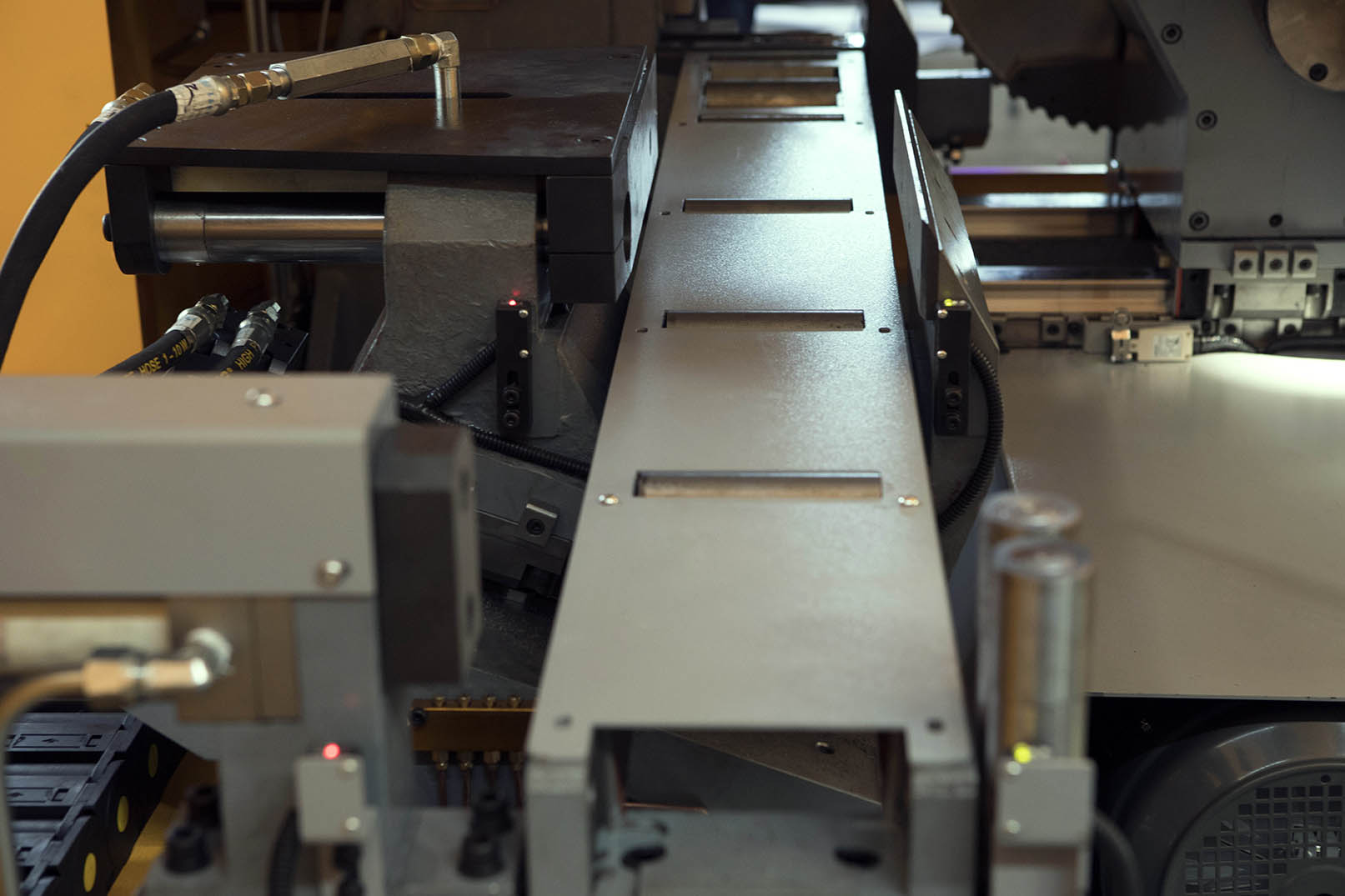

5) Feeding Method
Clamping Method: Horizontal Clamping
Feeding Drive Method: Servo Motor + Ball Screw
Single Feeding Length: Up to 800mm, multiple cyclic feeding possible
6) Used Motors
Spindle Motor: AC 15kW
Hydraulic Motor: AC 5.5kW
Chip Removal Motor: AC 0.22kW
Feeding Motor: AC 2.0kW Servo Motor
Feeding Motor: AC 3.0kW Servo Motor
Heat Exchanger: AC 68W 220V
Damper Cooling Fan: AC 38W 220V
Lubricating Oil Pump: AC 25W 220V
7) Hydraulic System
Hydraulic System Pressure: 7MPa
Hydraulic Oil Tank Capacity: 130L (46# Anti-wear Hydraulic Oil)
8) Pneumatic System
Pneumatic Pressure: 0.4-0.7MPa
9) Cooling System
Cooling Method: Oil Mist Spray Cooling
10) Lubrication System
Lubrication Method: Fully Automatic Centralized Lubrication
11) Chip Removal System
Chip Removal Method: Fully Automatic Chain Plate Chip Conveyor

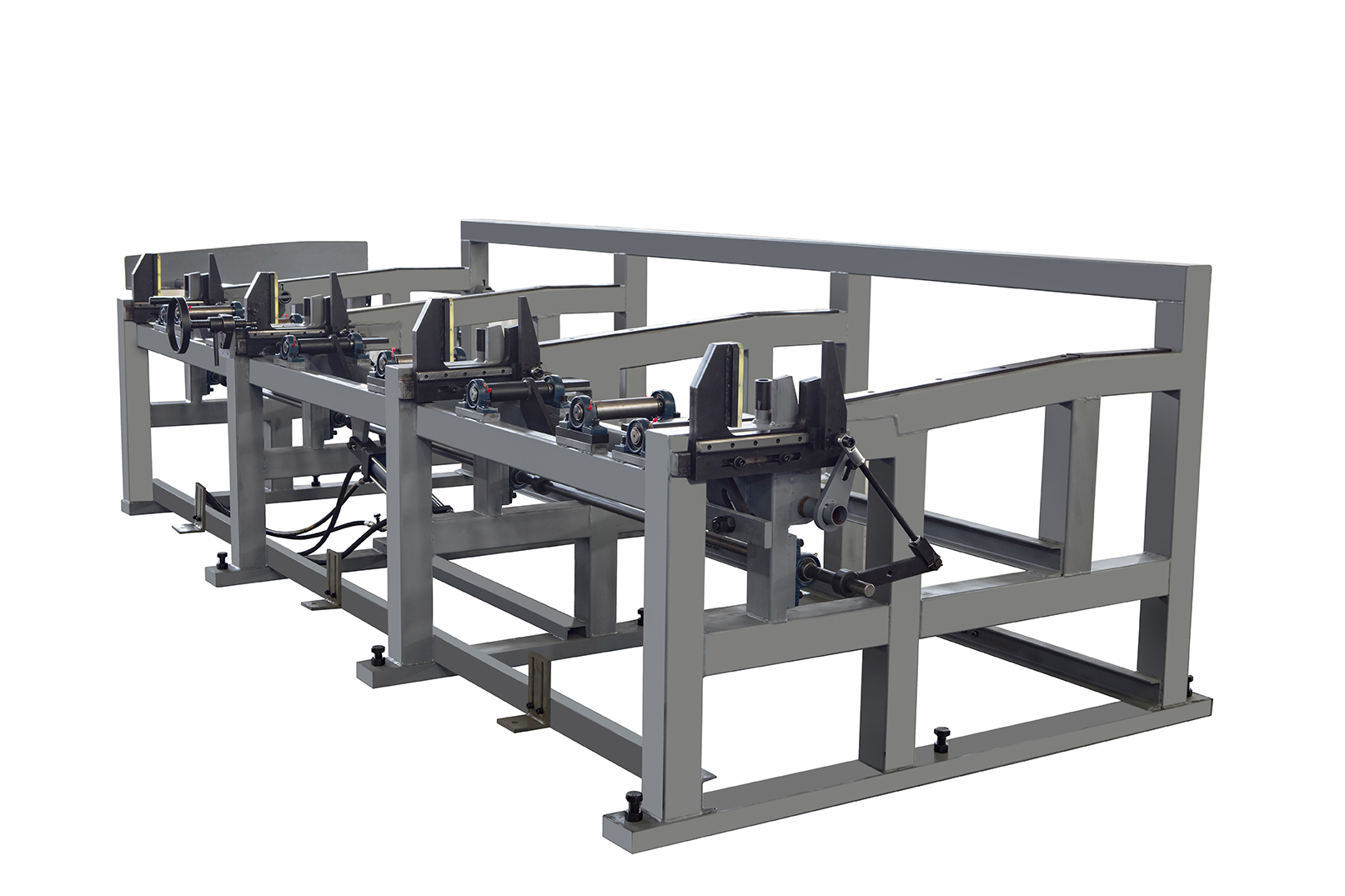

12) Machine + Material Rack Dimensions (L*W*H)
7300mm*3060mm*2100mm
(Refer to "Section IX - Outline Layout Diagram" for details)
13) Machine + Material Rack Weight
6300kg (5100+1200)
Main Component Origin
Gearbox bearings:
|
SKF (Sweden)
|
Main motor:
|
TECO (Taiwan) / Beide (Siemens) / Detong
|
Frequency converter:
|
Mitsubishi (Japan)
|
Servo motor:
|
Mitsubishi (Japan)
|
Servo driver:
|
Mitsubishi (Japan)
|
PLC:
|
Mitsubishi (Japan)
|
Touch screen:
|
Mitsubishi (Japan)
|
Low-voltage accessories:
|
Schneider (France)
|
Linear guide:
|
Topking (Taiwan)
|
Lead screw
|
HIWIN (Taiwan)
|
Pneumatic solenoid valve:
|
Airtac (Taiwan)
|
Air pressure sensor:
|
SMC (Japan)
|
Main motor belt (narrow V-belt):
|
MITSUBOSHI (Japan)
|
Limit switch, photoelectric switches, proximity switches:
|
Omron (Japan)
|
Hydraulic solenoid valve:
|
Keiki (Japan)
|
Plunger pump:
|
Yuken (Taiwan)
|
